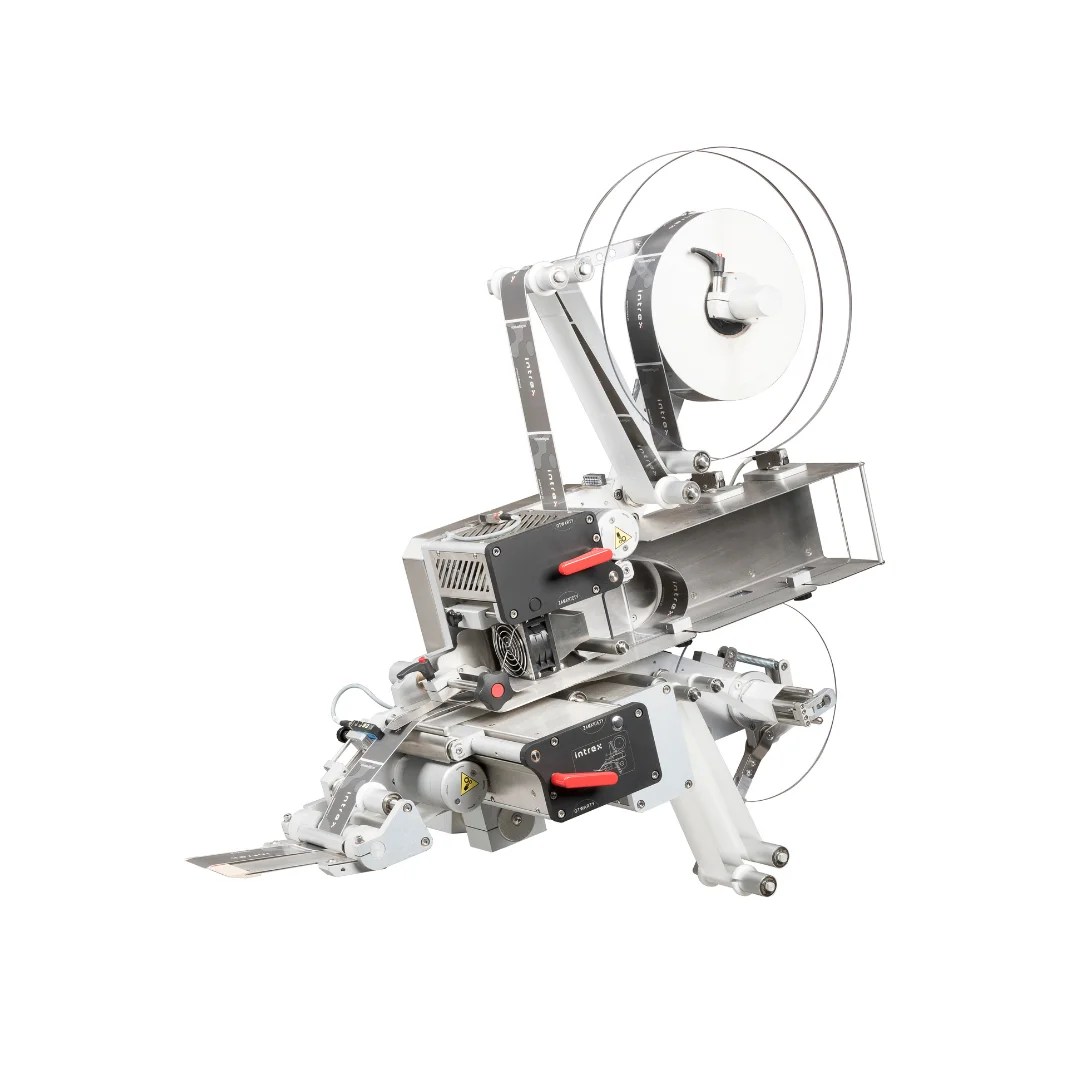

Labelling head INTREX 300+
Labeller designed for high speed and high precision applications. Main servo drive, active rewinder and optional active unwinder allow the speeds up to 140 m/min. Perfect solution for printing industry and very fast machines reaching 600 labels per minute.
- One of the fastest heads on the market
- Air-loop module minimizes drag during high speed labelling process
- Large 400mm unwinder allows more labels on the roll
- Control systems based on B&R Automation solutions and servo drives
| Technical data | |
|---|---|
| Max label web width | 90 mm, 160 mm |
| Max label roll diameter | 400 mm |
| Label sensor | Optical, ultrasonic (option) |
| Label feed speed | 140 m/min |
| Label feeding precision | +/- 0,5 mm |
| Memory | 100 programs with alphanumeric names |
